Fully-welded & safe
KLINGER is your specialist for underground installation valves! Our valves stand out due to their absolute tightness, exceptional durability, functionality, user-friendliness, and minimal maintenance requirements.
Maximum Reliability
This is also true for our ball valve Monoball KHO-U, which meets all challenges of underground installation, especially in the field of hot water applications. Fully welded seams and double-sealed systems prevent corrosive influences from penetrating or the medium from escaping. Maintenance requirements are virtually eliminated. Here, we deliver the highest quality for the most demanding requirements.
Fully Welded & Safe

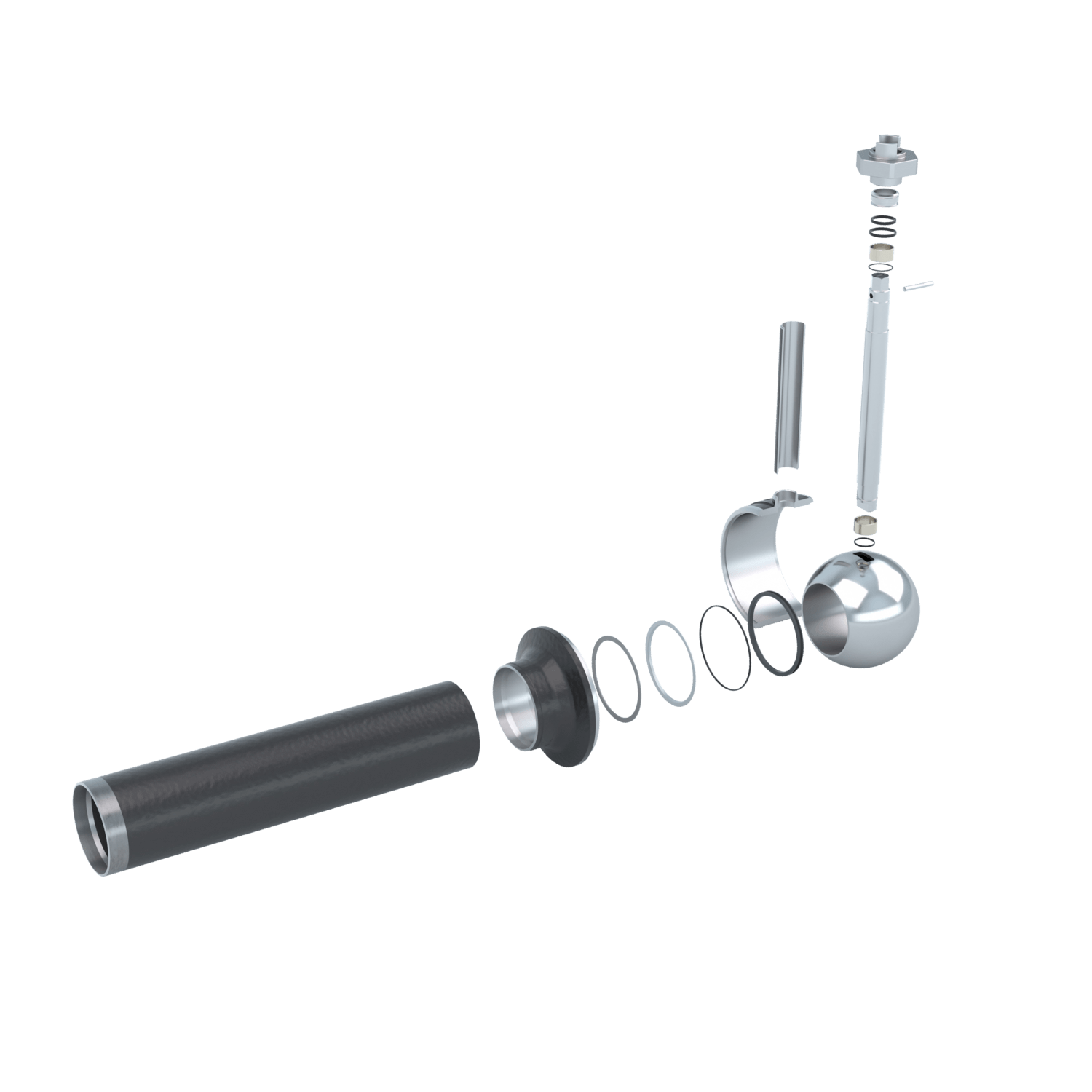

The Monoball KHO-U is available in nominal sizes ranging from DN 25 to DN 250 and is supplied uninsulated. The permanently elastic, maintenance-free sealing system consists of corrosion-resistant, pre-tensioned stainless steel disc springs and graphite-reinforced PTFE sealing rings.
The load-optimized ball valve body with an integrated shaft is made from solid steel or stainless steel castings and withstands the highest tensile and compressive forces. The fully welded seams across the cross-section ensure a stress-optimized design. A fully welded seam is also used for the shaft extension on the integrated shaft, which provides an optimal welding connection compared to conventional fillet welds.
Maximum Safety for Your Project – That’s our Mission!
Simple Installation and Operation
Thanks to its specifications, the Monoball KHO-U is perfectly suited for various application areas and demanding conditions in underground installations. Additionally, the KHO-U impresses with its pre-configured insulation option and easy installation and operation, even for challenging projects.
Our quality – for your safety and environmental protection.
For more information about the new underground ball valve please click here.
