KLINGER Ball Valves

Ball valves are modern shut-off valves which are very reliable in operation.

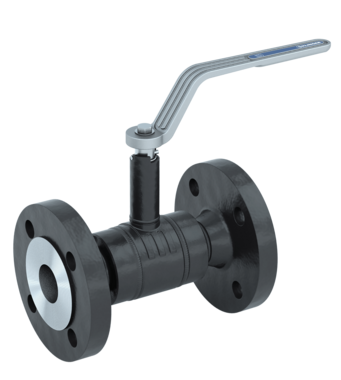

Monoball® KHO

Fully-welded ball valve Monoball KHO

Fully-welded ball valve
PN 16/40
DN 15 – 250

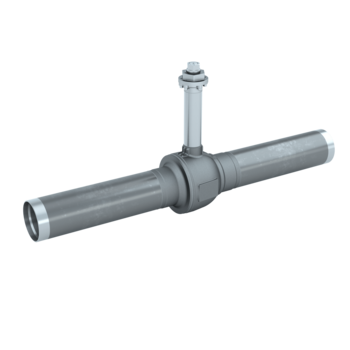

Monoball® KHO-U

Fully-welded ball valve Monoball KHO-U

Fully-welded ball valve for underground solutions
PN 25
DN 25–250

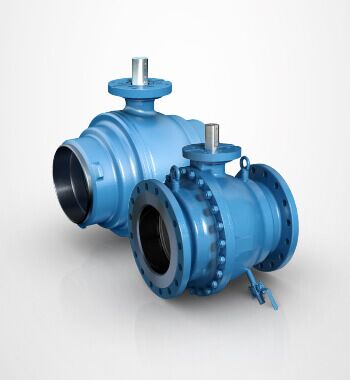

BALLOSTAR® KHI

Alternative Bildbeschreibung...

PN 16/25/40
DN 150 - 1000 (KHSVI VVS up to DN 800)

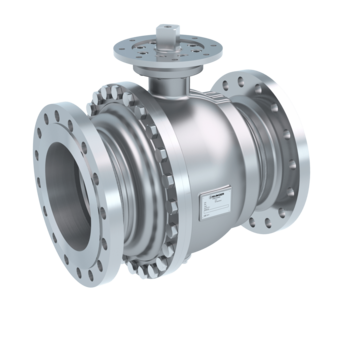

BALLOSTAR® KHI-F

Ballostar KHI-F Industry ball valve

2-piece ball valve

PN 10/16/25/40
DN 150-400 (KHSVI VVS up to DN 800)

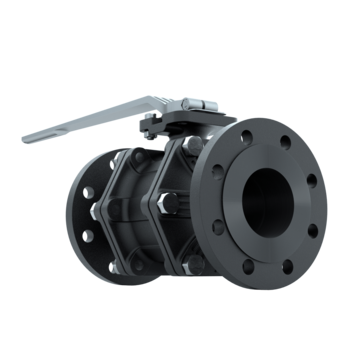

BALLOSTAR® KHA

Ball valves Ballostar® KHA

3-piece ball valves
PN 16/25/40/63/100
DN 15–125

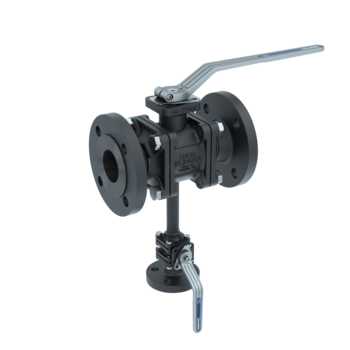

BALLOSTAR® KHA DBB

Ball valves Ballostar® KHA DBB

3-piece ball valve
PN 16/25/40/63/100
DN 15–125, ASME CL 1/2"-5"

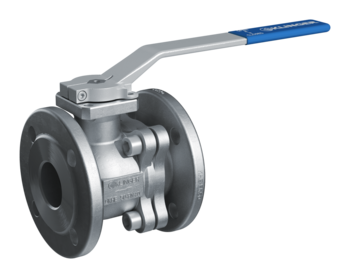

BALLOSTAR® KHE

Ball valves Ballostar® KHE

2-piece ball valves
PN 16/40, Class 150
DN 15–200, ½"–8"

KLINGER Ball Valves

Reliably sealed – inside and out

Ball valves are modern shut-off valves which are very reliable in operation. The circular bore guarantees a flow characteristic which is similar to a pipe. As there is no shut-off device in the flow, ball valves with full bore are piggable without any problems.
Due to the usage of standardised mounting flanges, the optimizing of operating torques and the high compatibility to different actuator designs and makes, our ball valves keep up with the increasing of automated production processes and the requirement of remote-controlled industrial facilities.

KLINGER Fluid Control offers five product ranges of ball valves which differ in three main features: nominal width range, construction and available end connection. The table below provides an overview on the available product ranges:

Product overview ball valves:

  • Hot water, steam and heat transfer oils: in power plants and district heating supply
  • Viscous media: e.g. bitumen (oil industry and refineries), molasses (breweries)
  • Liquid and gaseous media in refineries and tank farm construction (hydrocarbons, fuels and oils)
  • Liquid gas and natural gas
  • Compressed air supply in the industry
  • Dusty media: cement in plants and on silos
  • In the paper and textile industry: dye liquor, digester liquor
  • In the chemical industry: acid-resistant ball valves for chemical solutions (acids, bases, etc.)



Product details

Types DN Design Connections
Ballostar KHA DN 15-125 3-piece flange, threaded connection, welding ends
Ballostar KHA DBB DN 15-125 3-piece flange, threaded connection, welding ends
Ballostar KHE DN 15-200,
½"- 8"		 2-piece flange
Ballostar KHI DN 150-1000 2-piece (opt. fully welded) flange, welding ends
Ballostar KHI-F DN 150-400 2-piece flange
Monoball KHO DN 15-250 one piece, fully welded flange, threaded connection, welding ends
Monoball KHO-U DN 25-250 one piece, fully welded welding ends

Download Brochure

Please find attached the KLINGER Fluid Control brochure concerning total cost of ownership.

Total cost of ownership

Brochure KLINGER Fluid Control TCO and LCC (2.3 MiB)
