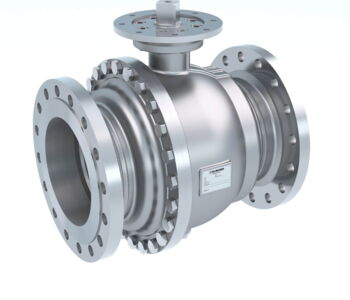

KLINGER Ballostar® KHI-F

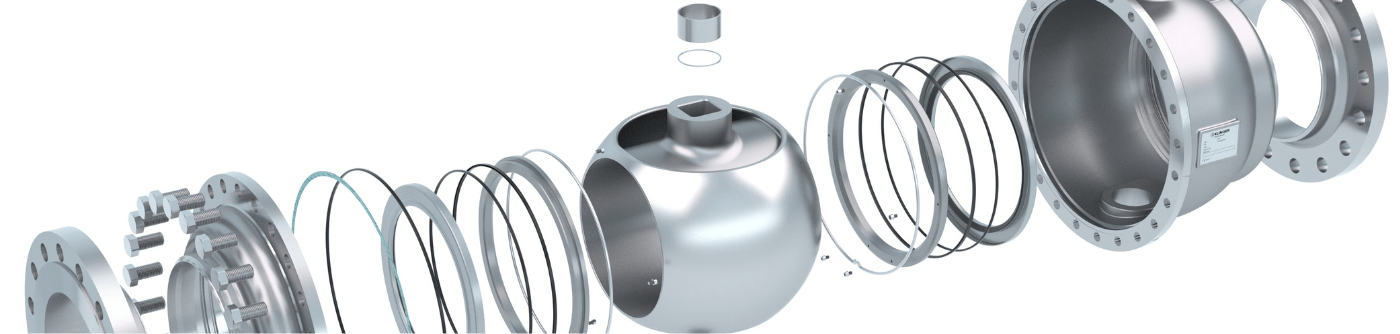

The great one with the unique KLINGER elastic sealing system.
The KLINGER Ballostar KHI-F ball valves are designed to meet the harshest and most demanding applications in various industries. Furthermore the KHI-F comes along with stainless steel and duplex housing materials with soft and metal seated sealing system.
The main features of the KHI-F
- Flexible construction for various applications in different industries
- Fire-Safe certification in standard version
- Flanged ANSI Version CL 150/300 available
- Housing material in duplex available
- Improved O-ring system on operating shaft and additional C4430 sealing on pitch flange ⇒ Fugitive emission acc. to ISO 15848-1
- Standard temperature range up to max. 250°C
- Improved weight, lighter investment casting construction
Product advantages KHI-F ball valves
- 2-piece ball valve with full bore
- Trunnion mounted
- Double tightness in both directions
- Top flange acc. ISO 5211
- Leakage rate A (EN 12266-1/ISO 5208), Class VI for soft seated
- Leakage rate Class IV-S1 (EN 60534-4) metal seated
- ISO 14313 Double Block & Bleed
- Fire-Safe acc. to ISO 10497 + API 607
- Fugitive emission certificate acc. to EN ISO 15848-1: ISO FE CH-C03-SSA0-tRT (120°C) - (40bar)
- SIL 2
- BAM Oxygen
- Double Block & Bleed with optional drain valve
- Anti blow out stem
- Anti static tested
- Non service packing
Product details
| PN | 10/16/25/40, ASME CL 150/300 |
| DN | 150-400, 6"-16" |
| Housing | rust and acid proof casting, duplex casting |
| Ball | rust and acid proof casting, duplex casting |
| Temperature | -45°C to +250°C depending on O-ring material |
| Design | Flange in acc. with EN 1092-1 or ASME B16.5 |
| Type | Two-piece ball valve |
Download brochures
Please find attached the KHI-F datasheet with detailed information.
